9000 lbs Winch with Wire Rope

•  Rated line Pull: 9000lbs(4090kgs)
•  Motor: 4 2kw. 5.5hp,12V DC Series Wound
•  Control: Remote switch 11.5ft(3 5m)lead
•  Meas: 600×340×250mm(1 pc)
•  Gear train: 3 Stage planetary
•  Gear reduction ratio: 236:1
•  Braking Action: Automatic in-The Drum
•  Drum size: Diameter 2.5"(63.5mm)Length 8.8"(224mm)
•  Cable; 85ft of 21/64"diameter (8.3mm*26m)
•  Fairlead: 4-Way Roller Fairlead
•  Remote Control: Include
•  Battery: Recommended:650 CCA minimum for winching
•  Battery Leads: 2 gauge,72"(1.83m)
•  Finish: Matt Black
•  Weight: N.W.84lbs(38kgs)G.W.94lbs(42 kgs)

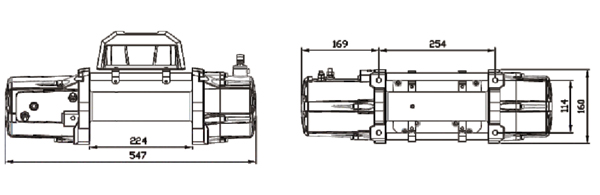

•  Overall dimensions: (L×W×H)21.5" x6. 3" x8. 35" (547x160x212mm)
•  Mounting Bolt Pattern: 10 00±0.015"×4.50±0.010"(254× 114.3mm)

Address

No.38 Dongbei Road, Dongqiao Town, Haishu District, Ningbo, China
Phone

0574-83082762
Email

sales@chimawinch.com

Model:CM9000-N (NEW)

Product Description

Pull,Speed,Amperes,Volts(First Layer)

Line Pull(lbs./kgs)	Line Speed FPM(m/min)	Motor(Amps)
0	27.9ft(8.5m)	56
2250	20.7ft(6.3m)	148
4500	14.5ft(4.4m)	220
6750	8.2ft(2.5m）	280
9000	4.6ft(1.4m)	390

Line Pull & Cable Length

Layer	Rated Line Pull(lbs./kgs)	Total Rope On Drum(ft/m)
1	9000(4090)	16.2(5.0)
2	6900(3129)	39.0(12.0)
3	5845(2650)	65.0（20.0）
4	4818(2190)	92.0（28.0）
