9000 lbs Best Winch for SUV

•  Rated line Pull: 9000lbs(4090kgs)
•  Motor: 4.0kw, 5.5hp, 12V DC Series Wound
•  Control: Remote switch 11.5ft(3.5m)lead
• Meas: 600×340×250mm(1pc)
•  Gear train: 3 Stage planetary
•  Gear reduction ratio: 218.2:1
•  Braking Action; Automatic in-The Drum
•  Drum size: Diameter 2.5”(63.5mm)Length 8.8"(224mm)
•  Cable: 85 ft of 21/64"diameter (8.3mm×26m)
•  Fairlead; 4-Way Roller Fairlead
•  Remote Control: Include
•  Battery: Recommended:650 CCAminimum for winching
•  Battery Leads: 2 gauge,72"(1.83m)
•  Finish: Matt Black
•  Weight: N.W.84lbs(38kgs)G.W.94lbs(42kgs)

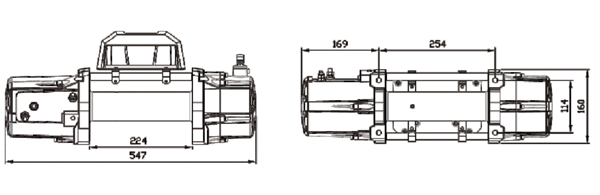

•  Overall dimensions: (L×W×H )20.9"x6.3"×8.35"(530×160×212mm)
•  Mounting Bolt Pattern: 10.00±0.015"×4.50±0.010"(254×114.3mm)

Address

No.38 Dongbei Road, Dongqiao Town, Haishu District, Ningbo, China
Phone

0574-83082762
Email

sales@chimawinch.com

Model:CM9000-E (NEW)

Pull,Speed,Amperes,Volts(First Layer)

Line Pull(lbs./kgs)	Line Speed FPM(m/min)	Motor(Amps)
0	19.68ft(6.0m)	80
2250(1022)	11.2ft(3.41m)	145
4500(2045)	9.0ft(2.74m)	218
6750(3068）	7.2ft(2.19m）	260
9000（4090）	5.6ft(1.7m)	320

Line Pull & Cable Length

Layer	Rated Line Pull(lbs./kgs)	Total Rope On Drum(ft/m)
1	9000(4090)	16.2(5.0)
2	6900(3129)	39.0(12.0)
3	5845(2650)	65.0(20.0)
4	4818(2190)	92.0(28.0)
