9000 lbs Electric Winch with Automatic Brake

• Motor: 4.0kw,5.5hp,12V DC Series Wound
• Control: Remote switch 11.5ft(3 5m)lead
• Meas: 600×340×250mm(1pc)
• Gear train: 3 Stage planetary
• Gear reduction ratio: 218.2:1
• Braking Action: Automatic in-The Drum
• Drum size: Diameter 2.5"(63.5mm)Length 8.8"(224mm)
• Cable: 85ft of 21/64"diameter(8.3mm×26m)
• Fairlead: 4-Way Roller Fairlead
• Remote Control: Include
• Battery: Recommended:650 CCA minimum for winching
• Battery Leads: 2 gauge,72"(1 83m)
• Finish: Black/Dark Grey
• Weight: N.W.84lbs(38kgs)G.W.94lbs(42kgs)

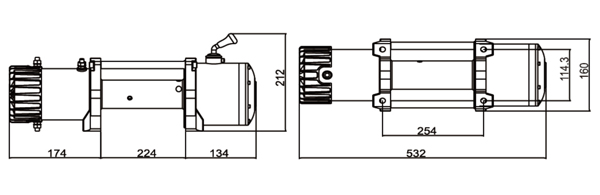

• Overall dimensions: (L×W×H )20.9"×6.3"×8.35"(530x160x212mm)
• Mounting Bolt Pattern: 10.00±0.015"×4.50±0.010"(254×114.3

Address

No.38 Dongbei Road, Dongqiao Town, Haishu District, Ningbo, China
Phone

0574-83082762
Email

sales@chimawinch.com

Model:CM9000 (Ordinary)

Product Description

Pull,Speed,Amperes,Volts(First Layer)

Line Pull(lbs./kgs)	Line Speed FPM(m/min)	Motor(Amps)
0	19.68ft(6.0m)	80
2250(1022)	11.2ft(3.41m)	145
4500(2045)	9.0ft(2.74m)	218
6750(3068)	7.2ft(2.19m）	260
9000(4090)	5.6ft(1.7m)	320

Line Pull & Cable Length

Layer	Rated Line Pull(lbs./kgs)	Total Rope On Drum(ft/m)
1	9000(4090)	16.2(5.0)
2	6900(3129)	39.0(12.0)
3	5845(2650)	65.0(20.0)
4	4818(2190)	92.0(28.0)
