10000 lbs Electric Winch Waterproof

• Rated line: 10000lbs(4545kgs)
• Motor : 4.5kw, 6hp,12V DC Series Wound
• Control: Remote switch 11.5ft(3.5m) lead
• Meas: 600x340«250mm(1 pc)
• Geartrain: 3 Stage planetary
• Gear reduction ratio: 236:1
• Braking Action: Automatic in-The Drum
• Drum size: Diameter 2.5"(63.5mm)Length 8.8"(224mm)
• Cable: 26m of 9.2mm diameter
• Fairlead: 4-Way Roller Fairlead
• Remote Control: Include
• Battery: Recommended :650 CCA minimum for winching
• Battery Leads: 2 gauge,72"(1.83m)
• Finish: Matt Black
• Weight: N.W.85.8lbs(39kgs)G.W.94.6lbs(43kgs)

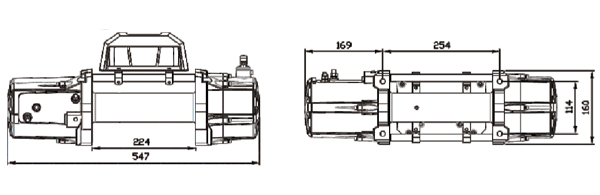

• Overall dimensions: (L×W×H )21.5"×6.3"×8.35"(547×160×212mm)
• Mounting Bolt Pattern: 10.00±0.015"×4.50±0.010"(254×114.3mm)

Address

No.38 Dongbei Road, Dongqiao Town, Haishu District, Ningbo, China
Phone

0574-83082762
Email

sales@chimawinch.com

Model:CM10000-N (NEW)

Product Description

Pull,Speed,Amperes,Volts(First Layer)

Line Pull(lbs./kgs)	Line Speed FPM(m/min)	Motor(Amps)
0	27.6ft(8.4m)	59
2500	19.7ft(6.0m)	155
5000	13.5ft(4.1m)	235
7500	7.2ft(2.2m）	310
10000	4.3ft(1.3m)	400

Line Pull & Cable Length

Layer	Rated Line Pull(lbs./kgs)	Total Rope On Drum(ft/m)
1	10000(4545)	16.2(5.0)
2	8000(3636)	42.6(13.0)
3	6670(3031)	72.0（22.0）
4	5720(2600)	85.3（26.0）
