10000 lbs Winches For Trucks

• Rated line: 10000lbs(4545kgs)
• Motor : 4.2kw, 5.7hp,12V DC Series Wound
• Control: Remote switch 11.5ft(3.5m)lead
• Meas : 600×340×250mm( 1pc)
• Geartrain: 3 Stage planetary
• Gear reduction ratio: 265.2:1
• Braking Action: Automatic in-The Drum
• Drum size: Diameter 2.5"(63.5mm)Length 8.8"(224mm)
• Cable: 26m of 9.2mm diameter
• Fairlead: 4-Way Roller Fairlead
• Remote Control: Include
• Battery: Recommended :650 CCA minimum for winching
• Battery Leads: 2 gauge,72"(1.83m)
• Finish :Black/Dark Grey
• Weight: N.W.85.8lbs(39kgs)G.W.94.6lbs(43kgs)

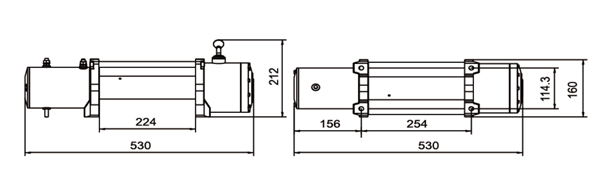

• Overall dimensions: (L×W×H )20.9"×6.3"×8.35"(530×160×212mm)
• Mounting Bolt Pattern: 10.00±0.015"×4.50±0.010"(254×114.3mm)

Address

No.38 Dongbei Road, Dongqiao Town, Haishu District, Ningbo, China
Phone

0574-83082762
Email

sales@chimawinch.com

Model:CM10000 (Ordinary)

Product Description

Pull,Speed,Amperes,Volts(First Layer)

Line Pull(lbs./kgs)	Line Speed FPM(m/min)	Motor(Amps)
0	17.8ft(5.4m)	80
4000(1818)	11.5ft(3.6m)	170
6000(2722)	9.8ft(3.0m)	220
8000(3629)	7.5ft(2.3m）	280
10000(4545)	4.9ft(1.5m)	360

Line Pull & Cable Length

Layer	Rated Line Pull(lbs./kgs)	Total Rope On Drum(ft/m)
1	10000(4545)	16.2(5.0)
2	8000(3636)	42.6(13.0)
3	6670(3031)	72.0(22.0)
4	5720(2600)	85.3(26.0)
