10000 lbs Heavy Winches for Sale

10000 lbs Heavy Winches for Sale

Performance Specifications
•  Single line pull: 10000lbs
•  Gear train: 88:1
•  Motor: Hydraulic motor
•  Brake: Automatic brake

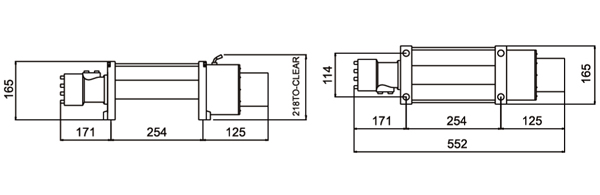

•  Drum size: Φ2.5"×L8.2"(Φ63.5mm×L224mm)
•  Cable：9.2mm×26m
•  Mounting bolt pattetn:10.00±0.015×4.50+0.010(254×114mm)
•  NW/GW: 62KGS/66KGS (1pc)
•  Meas: 640×250×410mm(1pc)

Price inquiry
Product details
  • CMH10000

Pull,speed,pressure,flow(first layer)


Line pullPressureFlowLine speed
LbsMpaG/min(L/min）M/min
01.05.3(20)0.70
80005.07.9(30)0.85
100007.013.2(50)0.90
