12000 lbs Electric Winch with Steel Rope

•  Rated line : 12000lbs(5455kgs)
•  Motor: 4.5kw,6.0hp,12V DC Series Wound
•  Control : Remote switch 11.5ft(3.5m)lead
•  Gear train: 3 Stage planetary
•  Gear reduction ratio : 265.2:1
•  Braking Action : Automatic In-The Drum
•  Drum size: Diameter 2.5"(63.5mm)Length 8.8"(224mm)
•  Cable : 26m of 9.5mm diameter
•  Fairlead : 4-Way Roller Fairlead
•  Remote Control: Include
•  Battery : Recommended :650 CCA minimum for winching
•  Battery Leads : 2 gauge.72"(1 83m)
•  Finish : Matt Black
•  Weight: N.W 88lbs(42kgs)G.W.95.7lbs(46kgs)

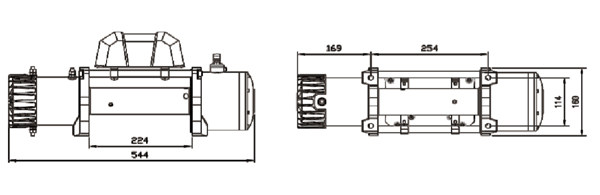

•  Overall dimensions : (L×W×H )20.9"×6.3"×8.35"(530×160×212mm)
•  Mounting Bolt Pattern : 10.00±0.015"×4.50±0.010*(254×114.3mm)
•  MEAS : 600×340×250mm(1Pc)

Address

No.38 Dongbei Road, Dongqiao Town, Haishu District, Ningbo, China
Phone

0574-83082762
Email

sales@chimawinch.com

Model:CM12000-E (NEW)

Product Description

Pull,Speed,Amperes,Volts(First Layer)

Line Pull(lbs./kgs)	Line Speed FPM(m/min)	Motor(Amps)
0	17.8ft(5.4m)	80
4000(1818)	11.5ft(3.5m)	170
6000(2722)	9.8ft(3.0m)	210
8000(3629)	8.2ft(2.5m）	250
10000(4545)	6.8ft(2.1m)	300
12000(5455)	5.0ft(1.5m）	360

Line Pull & Cable Length

Layer	Rated Line Pull(lbs./kgs)	Total Rope On Drum(ft/m)
1	12000(5455)	19.6(6.0)
2	9530(4332)	42.6(13.0)
3	7920(3600)	72.0(22.0)
4	6770(3077)	85.3(26.0)
