17000 lbs Heavy Duty Electric Winch

•   Rated line : 17000lbs(7727kgs)
•   Motor: 4 5kw,6hp,12V DC Series Wound
•   Control: Remote switch 11.5ft(3.5m)lead
•   Gear train : 3 Stage planetary
•   Gear reduction : 358.4:1
•   Braking Action : Automatic in-The Drum
•   Drum size : Diameter 3.4"(89mm)Length 8.8"(224mm)
•   Cable : 28m Length of 12mm diameter
•   Fairlead : 4-Way Roller Fairlead
•   Gross Weight : 58.5kgs
•   Net Weight: 54.5kgs

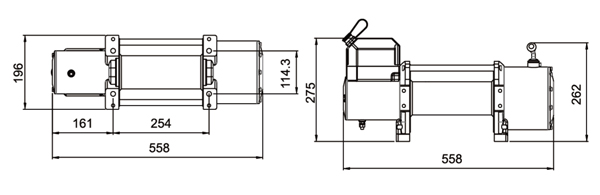

•   Overall dimensions : (L×W×H )(558×196×275mm)
•   Mounting Bolt Pattern : 10.00±0.015"×4.50±0.010"(254×114.3mm)
