12000 lbs Premium Winch China

12000 lbs Premium Winch China

Performance Specifications
• Single line pull: 12000lbs
• Gear train: 88:1
• Motor: Hydraulic motor
• Brake: Automatic brake
• Drum size: Φ2.5"×L8.8"(Φ63.5mm×L224mm)
• Cable：9.5mm×26m

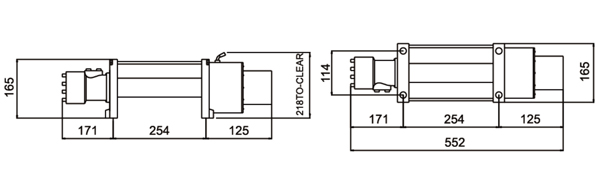

• Mounting bolt pattetn:10.00±0.015×4.50+0.010(254×114mm)
• NW/GW: 62KGS/66KGS (1pc)
• Meas: 640×250×410mm(1pc)



Price inquiry
Product details
  • CMH12000

Pull,speed,pressure,flow(first layer)


Line pullPressureFlowLine speed
LbsMpaG/min(L/min）M/min
01.05.3(20)0.70
80005.07.9(30)0.85
100007.013.2(50)0.90
120008.515.9(60)1.1
