5000 lbs Side By Side Winches

5000 lbs Side By Side Winches

  • Rated line: 5000lbs.(2272kgs.)single-line
  • Motor: 1.5hp 12V DC Permanent Magnet
  • Control: Handlebar mounted Mini-rocker switch
  • Gear train: 3-Stage planetary
  • Gear ratio: 166:1
  • Clutch(freespooling): Cam activated
  • Brake:Dynamic: Mechanical brake is available
  • Drum Diameter/Length: 2.0"/4.69"
  • Wire rope: 6.4mm×15.2m
  • Recommended Battary: 12Amp/hour minimum for winching
  • Battery Leads: 6 gauge

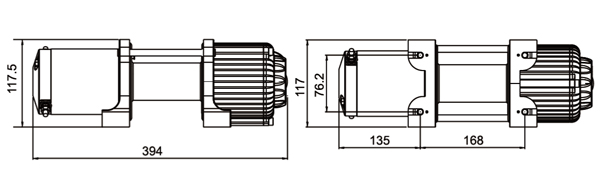

  • Dimensions: L×W×H(395×117×117.5)
  • NW/GW: 33KG/35KG(2pcs)
Price inquiry
Product details


Pull,Speed,Amperes,Volts(First Layer)

Line Pull(lbs./kgs)Line Speed FPM(m/min)Motor(Amps)
020.5ft(6.2m)30
1000(454)16.1ft(4.9m)83
2000(907)12.8ft(3.9m)136
3000(1361)10.7ft(3.3m）168
4000(1818)8.6ft(2.6m)232
5000(2272)6.1ft(1.9m)296


Line Pull & Cable Length


LayerRated Line Pull(lbs./kgs)Total Rope On Drum(ft/m)
15000(2722)9.8'(3)
24080(1851)22'(6.7)
33450(1565)36.1'(11)
42985(1354)50'(15.2)
