3500 lbs Electric ATV UTV Winches

  • Rated line: 3500lbs.(1590kgs.)single-line
  • Motor: 1.2hp,12V DC Permanent Magnet
  • Control: Handlebar mounted Mini-rocker switch
  • Gear train: 3-Stage planetary
  • Gear ratio: 166:1
  • Clutch(freespooling): Cam activated
  • Brake:Dynamic: Mechanical brake is available
  • Drum Diameter/Length: 2.0"/2.9"
  • Wire rope: 5.5mm×13.75m
  • Recommended Battary: 12Amp/hour minimum for winching
  • Battery Leads: 6 gauge

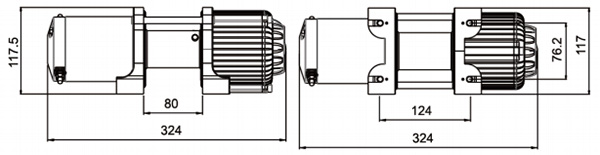

  • Dimensions: L×W×H(324×117×117.5)
  • NW/GW: 28KG/30KG(2pcs)

Product details

Pull, Speed, Amperes, Volts(First Layer)

Line Pull(lbs./kgs)Line Speed FPM(m/min)Motor(Amps)
019.68ft(6.0m)25
1000(454)12.8ft(3.9m)100
2000(907)8.2ft(2.5m)155
3000(1361)4.9ft(1.5m)220
3500(1590)3.9ft(1.2m)250


Line Pull & Cable Length


LayerRated Line Pull(lbs./kgs)Total Rope On Drum(ft/m)
13500(1590)8.85(2.7)
22792(1269)20.27(6.18)
32100(954)33.9(10.35)
41685(765)45(13.75)
