3500 lbs Waterproof ATV Winches

3500 lbs Waterproof ATV Winches

  • Rated line: 3500lbs.(1590kgs.)single-line
  • Motor: 0.8kw, 1.1hp, 12V DC Permanent Magent
  • Control: Handlebar mounted Mini-rocker switch
  • Gear train: 3-Stage planetary
  • Gear ratio: 136:1
  • Clutch(freespooling): Cam activated
  • Brake:Dynamlc: Mechanical brake is available
  • Drum Dlameter/Length: 2.0"/2.9"
  • Wire rope:7/32"×45'(5.5mm×13.75m)
  • Fairlead: Roller
  • Recommended Battery: 12Amp/hour minimum for winching

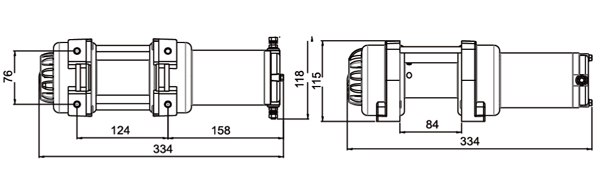

  • Dimensions: L×W×H: 13.1"×4.6"×4.5"(334×118×115)
  • Battery Leads: 6 gauge
  • NW/GW: 21KG/23KG (2pcs)

Price inquiry
Product details

Pull,Speed,Amperes,Volts(First Layer)


Line Pull(lbs./kgs)Line Speed FPM(m/min)Motor(Amps)
020.3ft(6.2m)24
1000(454)16ft(4.9m)85
2000(907)11.8ft(3.6m)136
3000(1361)6.5ft(2.0m）190
3500(1590)5.2ft(1.58m)240

Line Pull & Cable Length


LayerRated Line Pull(lbs./kgs)Total Rope On Drum(ft/m)
13500(1590)8.85(2.7)
22560(1163)20.27(6.18)
32100(954)33.9(10.35)
41685(765)45(13.75)
