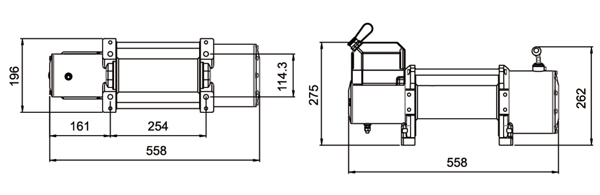

• Rated line pull: 15000lbs(6818kgs)• Motor: 4.2kw, 5.7hp, 12V DC series Wound• Control: Remote switch 11.5ft(3.5m)lead• Geartrain: 3 Stage planetary• Gear reduction: 358.4:1• Braking Action: Automatic in-The Drum• Drum size: Diameter 3.4"(89mm)Length 8.8"(224mm)• Cable: 26m Length of 12 mm diameter• Fairlead: 4-Way Roller Fairlead• Remote Control: Included• NW/GW: 54.5kgs/58.5kgs• Overall dimensions: (L×W×H )(558×196×275mm)• Mounting Bolt Pattern: 10.00±0.015"×4.50±0.010"(254x114mm)• Meas: 605x330x330mm(1pc)
